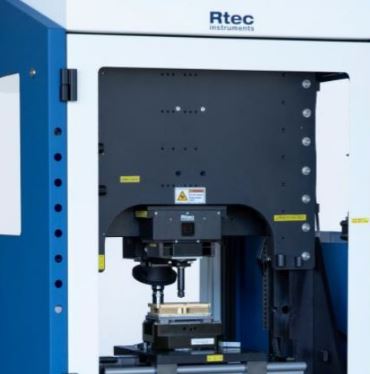

Tribometer - RTEC - MFT5000
Multi-functional tribological test bench for the study of tribological surface films. The universal multi-functional tribometer enables with a dedicated design the implementation of various standardized and customized tests in accordance with international regulations (ASTM / DIN / ISO) by operating in one or more interchangeable modules (e.g. reciprocal sliding, rotary one-way sliding, fretting, 4-ball system, …)
Reciprocating sliding:
- Load: 0.1 N to 1000 N
- Frequency: 0.1 Hz to 75 Hz
- Sliding speed: 0.01 m/s to 2 m/s
- Stroke: 0.1 mm to 25 mm
- Temperature control: -40 °C to 500 °C with or without lubricant
- Ball / pin size: 5 - 12.7 mm
Unidirectional sliding:
- Load: 0.1 N to 1000 N
- Sliding speed: 0.01 m/s to 12 m/s
- Temperature control: -40 °C to 500 °C with or without lubricant
- Ball / pin size: 5 - 12.7 mm
