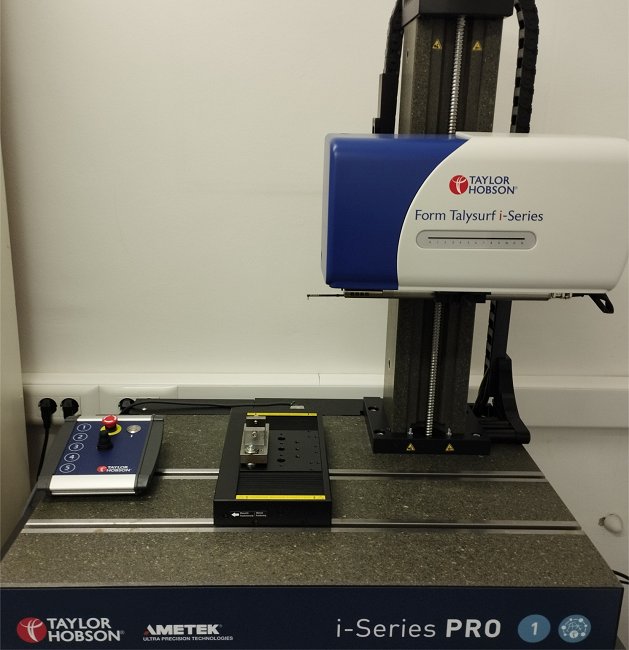

Form Talysurf i-Series PRO
Form Talysurf is a cutting-edge surface roughness and topography measurement system that provides standard roughness parameters, surface waviness, and irregularities. In addition, the advanced data analysis software attached to the machine makes the surface analysis more versatile.
- Traverse length – X Max. / Min. : 60 mm / 0.1 mm (2.4 in / 0.004 in), 120 mm / 0.1 mm (4.7 in / 0.004 in), 200 mm / 0.1 mm (7.9 in / 0.004 in)
- Traverse speeds: 13 mm/s (0.51 in/s)
- Max. Measuring speed: 0.1 mm/s, 0.2 mm/s, 0.5 mm/s, 1 mm/s, 2 mm/s & 5 mm/s (0.004 in/s, 0.008 in/s, 0.02 in/s, 0.04 in /s, 0.08 in/s & 0.2 in/s)
- Minimum data sampling interval in X: 25 nm (0.98 µin)
- Straightness uncertainty: 60 mm Traverse unit - 0.12 µm (4.7 µin), 120 mm Traverse unit - 0.15 µm (5.9 µin), 200 mm Traverse unit - 0.18 µm (7.1 µin)
- Standards: DIN 4768, ISO 4287
