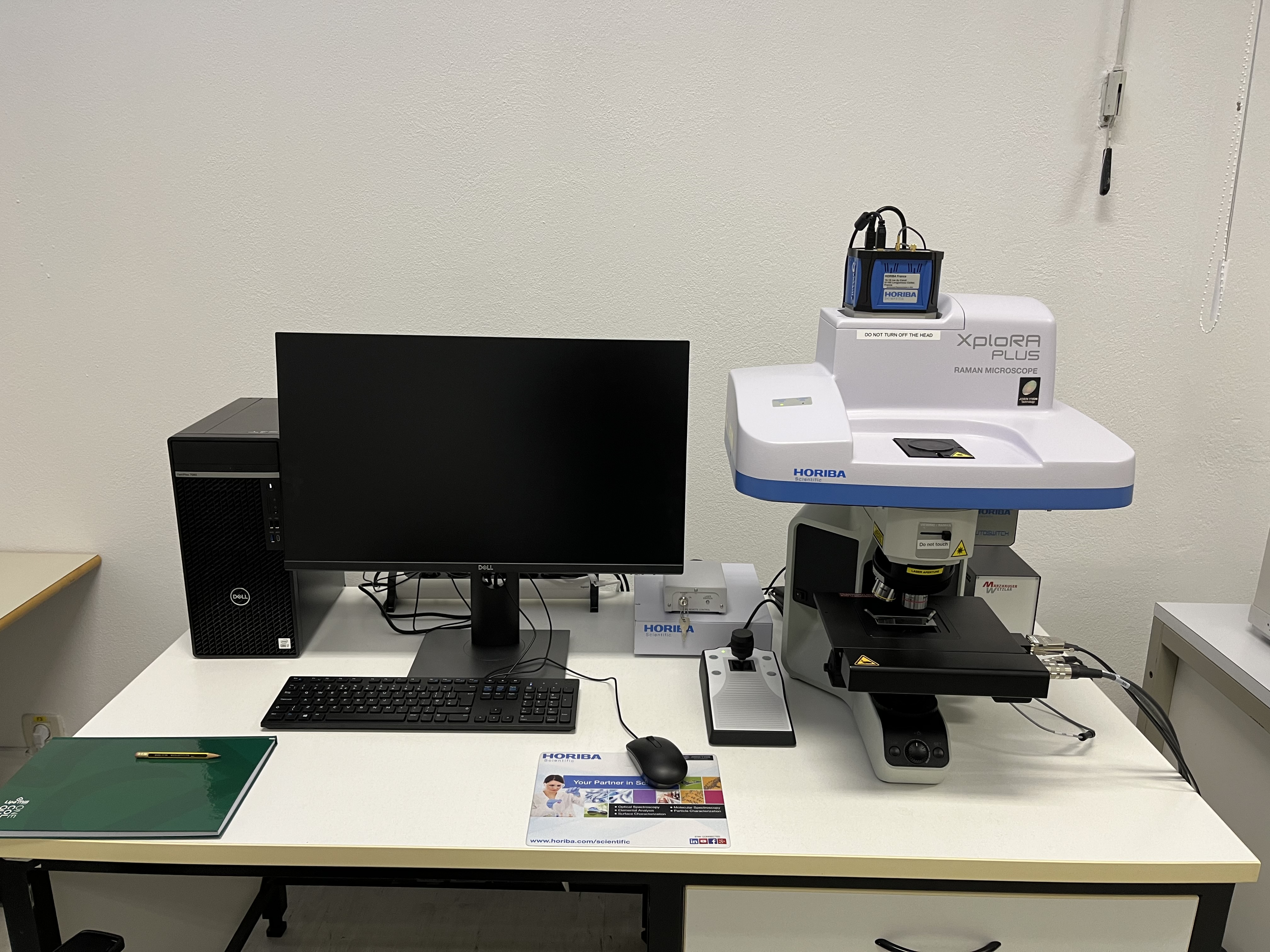

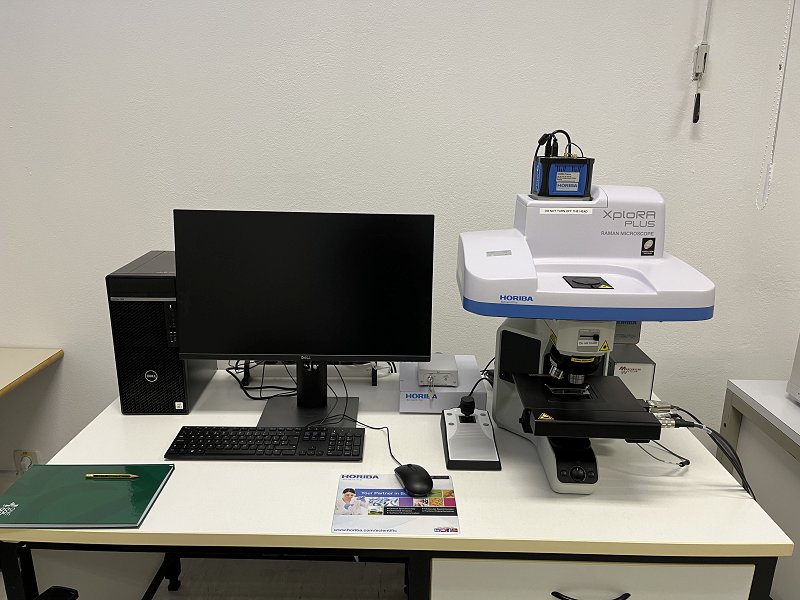

Raman spectrometer - Scientific XploRA Plus V1.2 - HORIBA

Fast Raman spectrometer with confocal optical microscope for material, earth, and life sciences.

Main features:

  • Olympus research grade microscope with 2 position motorized white light illuminator - PC controlled
  • 5 objective turret with 4 bright/dark field objectives included: 5x (NA = 0.1, WD = 19 mm), 10x (NA = 0.25, WD = 10.6 mm), 50x (NA = 0.50, WD = 10.6 mm) and 100x (NA = 0.9, WD = 0.21 mm)
  • Koehler Illumination by reflection (bright and dark field, LED) /transmission (bright field, LED)
  • Built in high resolution video camera for sample visualization
  • Integrated Imaging spectrometer with 4 gratings mounted on motorized turret (diffraction gratings: 600 gr/mm, 1200 gr/mm, 1800 gr/mm, 2400 gr/mm), HORIBA Scientific CCD detector, TE air cooled, 1024x256 pixels
  • 3 built-in directly coupled lasers with fully automatic switching
  • 6 position ND filter wheel
  • 3 position confocal pinhole
  • 3 position entrance slot
  • All elements are fully automated and computer controlled
  • LabSpec 6 software

Addons:

  • 532 nm (100 mW) / 638 nm (30 mW) / 785 nm (100 mW) laser kits for measurements from 60 cm-1 / 50 cm-1 / 50 cm-1
  • Full kit for sample positioning. Includes XY motorized stage (X = 75 mm, Y = 50 mm) and motorized Z device controlled by LabSpec software
  • Optical fiber entrance
  • NavSharp Module
  • ViewSharp Module
  • Automated Diamond Like Coating Analysis
